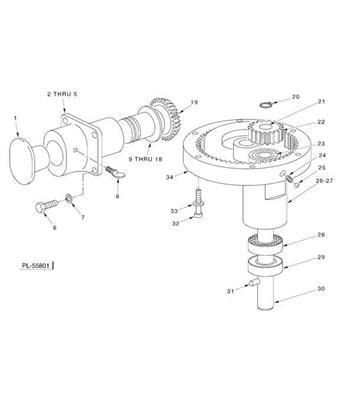

PLANETARY AND ATTACHMENT HUB UNIT

PLANETARY AND ATTACHMENT HUB UNIT PLANETARY AND ATTACHMENT HUB UNIT

By:

Share
1
on diagram

Plug - Attachment Hub

0
2
on diagram

Hub - Attachment (Painted)

0
3
on diagram

Hub - Attachment (Deluxe)

0
4
on diagram

Hub - Attachment (ML-134091)

0
5
on diagram

Quad Ring

0
6
on diagram

Mach. Screw 12-24 x 3/4 Flat Hd. (Painted)

0
7
on diagram

Lockwasher

0
8
on diagram

Thumb Screw

0
9
on diagram

Washer - Thrust (0.115 In. Thk.)

0
10
on diagram

Washer - Thrust (0.080 In. Thk.)

0
11
on diagram

Washer - Thrust (0.106 In. Thk.)

0
12
on diagram

Washer - Thrust (0.092 In. Thk.)

0
13
on diagram

Washer - Thrust (0.086 In. Thk.)

0
14
on diagram

Washer - Thrust (0.098 In. Thk.)

0
15
on diagram

Washer - Thrust (0.112 In. Thk.)

0
16
on diagram

Washer - Thrust (0.119 In. Thk.)

0
17
on diagram

Washer - Thrust (0.121 In. Thk.)

0
18
on diagram

Washer - Thrust (0.129 In. Thk.)

0
19
on diagram

Bevel Drive Gear & Seal Assy.

0
20
on diagram

Retaining Ring

0
21
on diagram

Key 3/16 x 3/16 x 1

0
22
on diagram

Pinion - Beater (19T)

0
23
on diagram

Ball Bearing

0
24
on diagram

Spring

0
25
on diagram

Ball 1/4 Dia.

0
26
on diagram

Planetary (Painted)

0
27
on diagram

Planetary (Deluxe)

0
28
on diagram

Ball Bearing

0
29
on diagram

Seal - Oil (1 In. I.D.)

0
30
on diagram

Agitator Shaft Assy. (Incls. Item 31)

0
31
on diagram

Pin

0
32
on diagram

Cap Screw 1/4-20 x 1 1/4 Fil. Hd.

0
33
on diagram

Lockwasher 1/4 Helical

0
34
on diagram

Internal Gear (63T) (Incls. Items 24 & 25)

0
35
on diagram

Planetary Assy.(Painted)(Incls. Items 20 thru 23,26,28,29,& 30)

0
